- GRASSEDECK® PRO HAS BEEN INDEPENDENTLY TESTED TO BS 7976 PART 2 TO CONFORM WITH UK SLIP RESISTANCE GUIDELINES AND IS RATED AS PROVIDING ‘LOW POTENTIAL FOR SLIP’ IN BOTH WET AND DRY CONDITIONS.
|
- GENERAL MAINTENANCE INCLUDING REGULAR CLEANING WITH A MILD DETERGENT, TOGETHER WITH THE RE-COATING OF TIMBER COMPONENTS AND THE RE-APPLICATION OF ADHESIVE AS REQUIRED, WILL EXTEND THE SERVICE LIFE OF GRASSEDECK® PRO.
|
- DECK BOARDS CAN BE FIXED WITH STANDARD DECK SCREWS OR FIXINGS. IF FACE FIXING, GREEN COLOURED DECKSCREWS WILL BE LESS VISIBLE ON THE DECK SURFACE.
- IF CUT, SAWN ENDS SHOULD BE RE-TREATED WITH A SUITABLE TIMBER PRESERVATIVE AND ADHESIVE OR MECHANICAL FIXINGS MUST BE USED TO ENSURE THE GRASS IS SECURELY REAFFIXED TO THE TIMBER DECK BOARD.
- SUPPORTS SHOULD BE SET AT A MAXIMUM OF 400MM CENTRES. A SLIGHT FALL SHOULD BE INCORPORATED INTO THE DESIGN TO HELP IMPROVE DRAINAGE.
|
USING 150mm WIDTH NOMINAL SIZE DECK BOARDS
 |
|
|
|
 |
GRASSEDECK®PRO BOARD
 |
Nominal
(mm) |
Finished
Dimensions (mm) |
Length
(m) |
Code |
|
|
|
32 x 150 |
28 x 144 |
4.5 |
156995 |
|
TIMBER
|
|
Dimensions |
32 x 150mm nominal / 28 x 144mm finished |
|
|
|
Species |
European Redwood / European Whitewood |
|
|
|
Botanical name |
Pinus Sylvestrus / Picea Abies |
|
|
|
Origin |
Finland |
|
|
|
Certification |
PEFC / DeckMark Plus Approved |
|
|
|
Description |

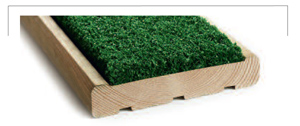

Rebated on face to allow for artificial grass, grooved on reverse |
|
|
|
Guarantee |
15 year guarantee against rot and fungal decay |
|
|
GRASSE
|
|
Life expectancy |
15 years |
|
|
|
Fibre |
100% Polyprop. /2.200 dtex /Curled |
|
|
|
Production method |
Tufting |
|
|
|
Gauge |
3.2mm |
|
|
|
Stitches |
29/10cm |
|
|
|
Tufts |
91.350 /m2 |
|
|
|
Grasse dimensions |
12 x 112mm |
|
|
|
Pile height |
12mm |
|
|
|
Pile weight |
810g/m2 |
|
|
|
Total weight |
1760g /m2 |
|
|
|
Tuft cloth |
Polypropylene woven 110g /m2 |
|
|
|
Colour |
Fern Green |
|
|
|
Backing |
Precoat, 500g /m2 Latex Compound |
|
|
|
Light fastness Scale |
7 (DIN 54004) |
|
|
|
UV stability |
>2,500 hours (DIN 45004) |
|
|
|
Chlore resistance |
4-5 (DIN 54019) |
|
|
|
Resistance to sea water |
4-5 (DIN 54007) |
|
|
ADHESIVE
|
|
Trade name |
Aro-Seal 1152 |
|
|
|
Article number |
ER012101-00 |
|
|
|
Durability |
Exterior grade (15 years life expectancy) |
|
|
|
Application method |
Pressurised multi head applicator |
|
|
|
Rate of application |
7 x 5mm bead in line spread pattern |
|
|
|
